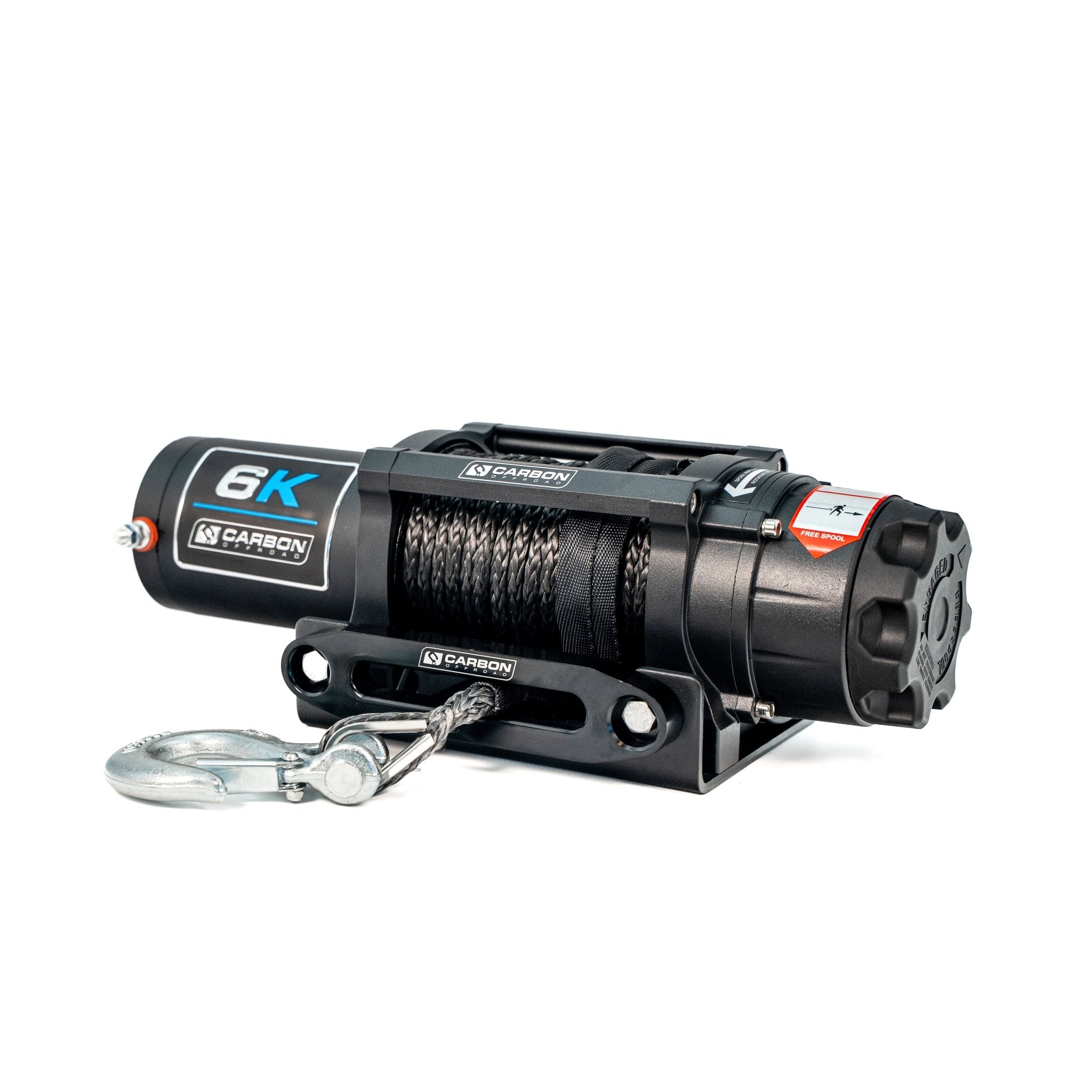

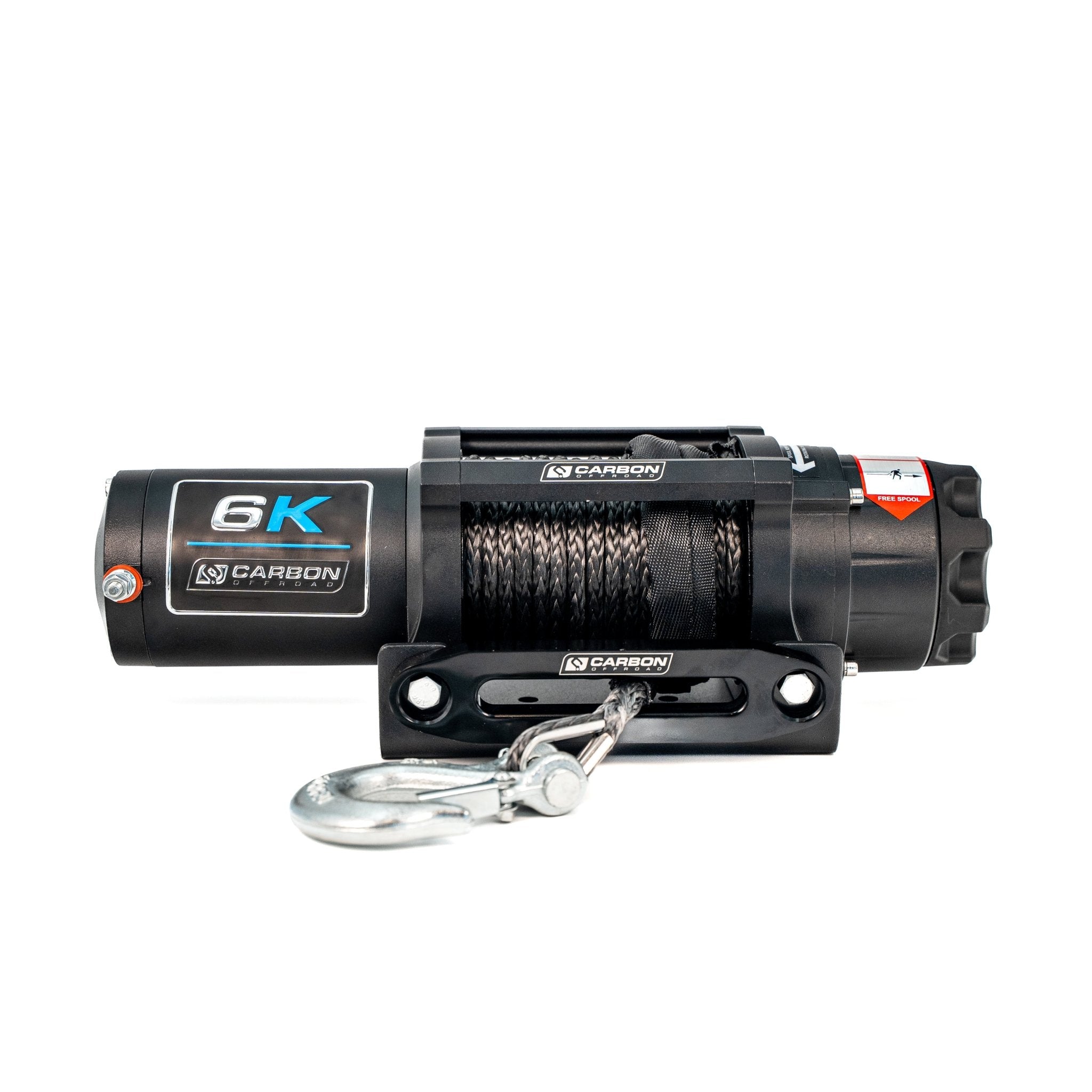

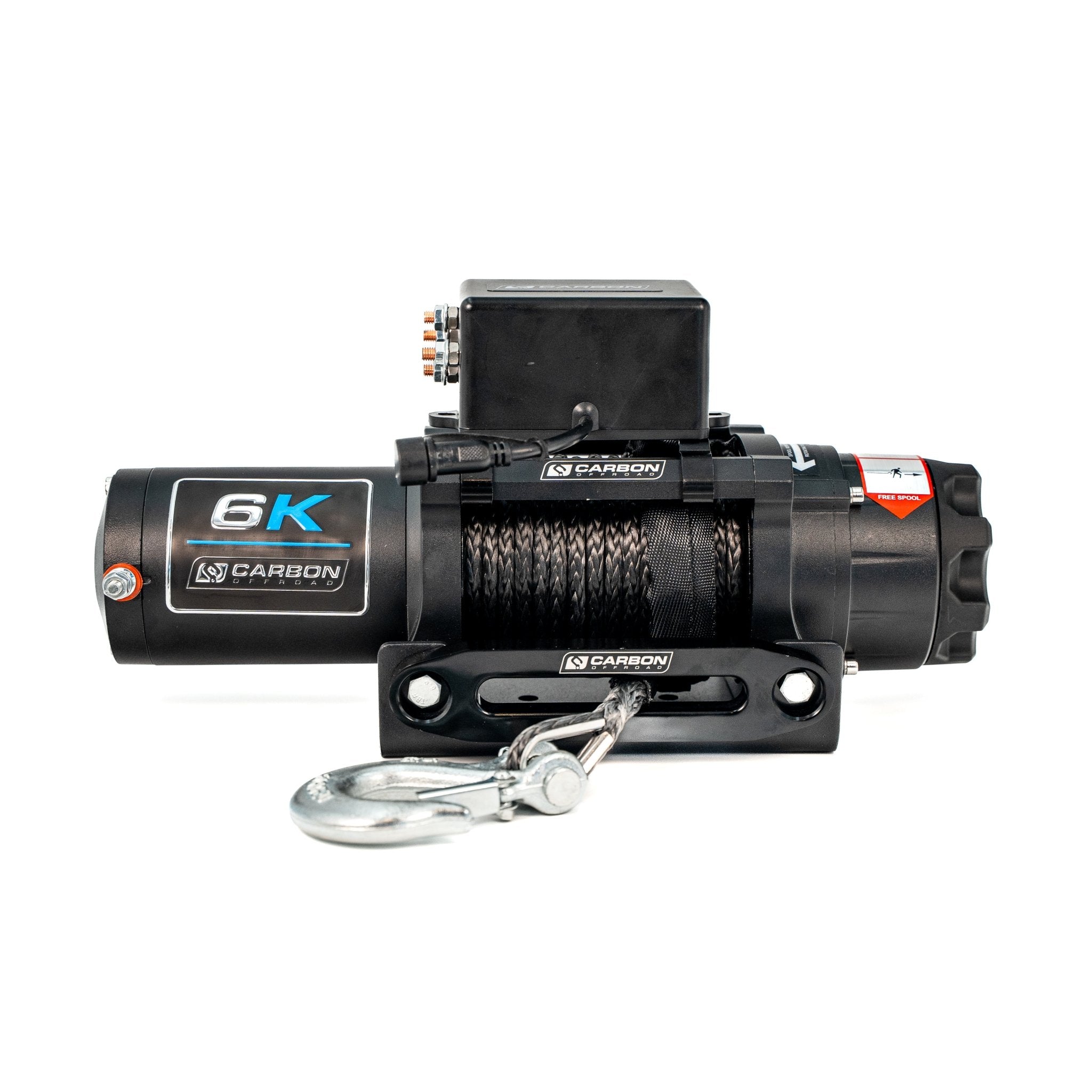

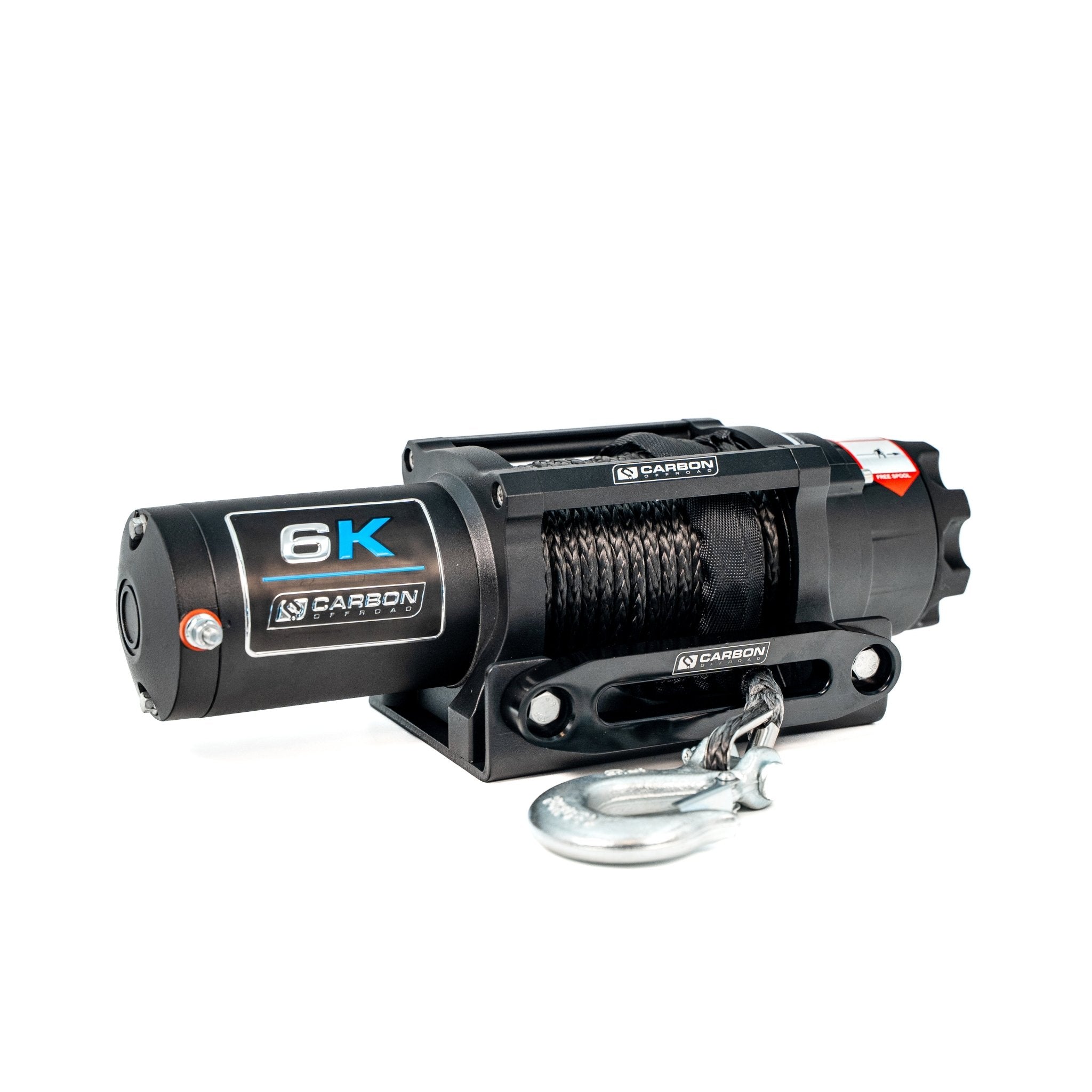

Carbon Offroad 6000lb ATV – Small 4X4 Winch

Carbon Offroad 6000lb ATV – Small 4X4 Winch

A compact and versatile 6000lb recovery and utility winch suited to ATVs, small 4WDs, trailers, caravans and boats. Its integrated mounting plate and compact dimensions make it ideal where installation space is limited.

Key Features

• 6000lb (2725kg) single-line rated pull
• 12V DC 2.5HP permanent magnet motor
• 3-stage planetary geartrain
• 147:1 gear ratio
• IP68-rated winch and solenoid (excluding remotes)
• Automatic braking in the motor bracket
• 16m x 6.5mm synthetic winch rope
• Aluminium hawse fairlead
• Wireless remote control
• Handlebar mini-rocker switch
• Integrated mounting plate

Specifications

• Part number: CW-XD6
• Drum: 51mm x 122mm
• Mounting bolt pattern: 167mm x 76mm
• Recommended battery: minimum 650 CCA for winching
• Dimensions: 385 x 115 x 119mm
• Winch weight: 8.3kg with synthetic rope attached
• Total kit weight: 11.2kg
• Warranty: Lifetime Mechanical / 5 Year Electrical

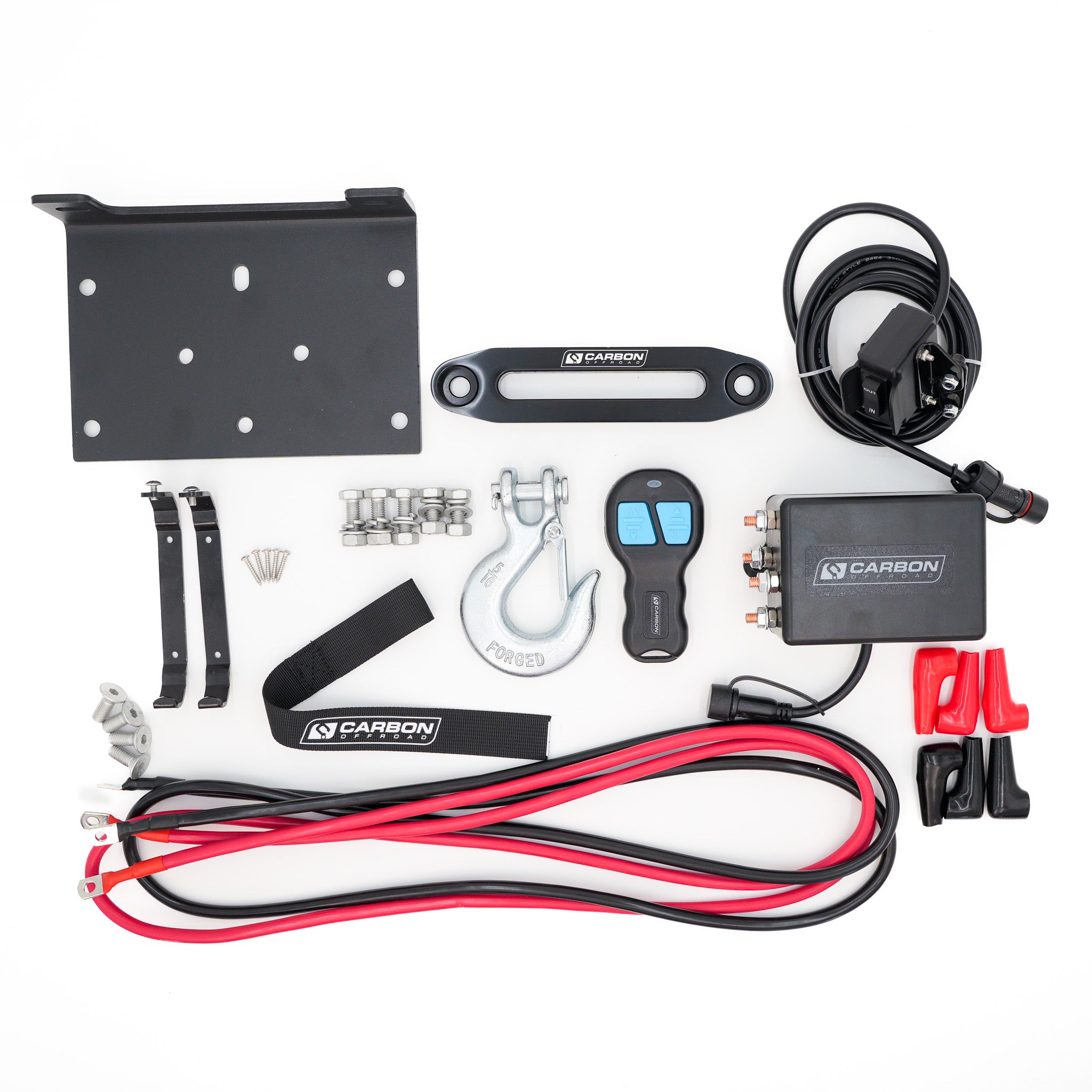

What’s Included

• 1 x Carbon Offroad 6000lb Winch
• 1 x 16m x 6.5mm Synthetic Rope
• 1 x Aluminium Hawse Fairlead
• 1 x Handlebar Mini-Rocker Switch
• 1 x Wireless Remote Control
• 1 x Integrated Mounting Plate & Bolt Kit

Note: A circuit breaker is not included.
