Carbon Scout Pro – 10000lb Winch V3

Carbon Scout Pro – 10000lb Winch V3

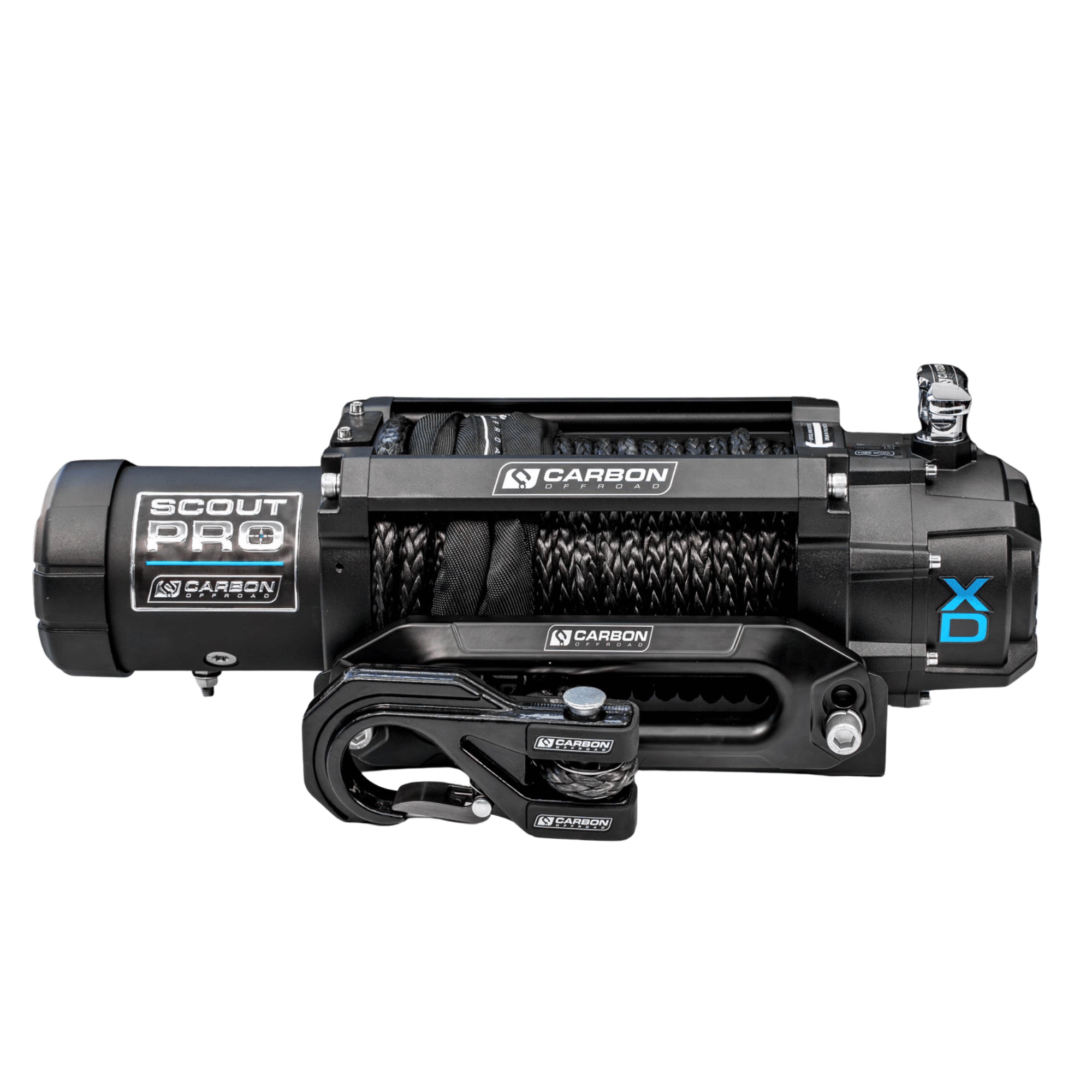

The Carbon Offroad Scout Pro XD10 is a 12V, 4536kg (10000lb) electric recovery winch built for regular, heavy-duty off-road recovery work. It is designed to suit heavier 4WDs and vehicles using a bull bar rated to 10,000lb.

Key Features

• Rated line pull: 4536kg (10000lb) single-line
• 12V DC 6.0HP series-wound motor
• 3-stage planetary geartrain
• 180:1 gear ratio
• Rotating ring gear clutch
• Automatic brake in the motor bracket
• 24m x 10mm synthetic winch rope
• MegaPro CNC billet Type 3 hard-anodised fairlead
• Checker-knurled winch drum for improved rope grip
• Matte black powder-coat finish
• 316 stainless steel hardware
• Compatible with the Carbon Offroad Air Freespool Clutch Upgrade

What’s Included

• 1 x Carbon Offroad Scout Pro XD10 10000lb Winch
• 1 x 24m x 10mm black synthetic winch rope
• 1 x winch rope thimble
• 1 x MegaPro CNC aluminium fairlead

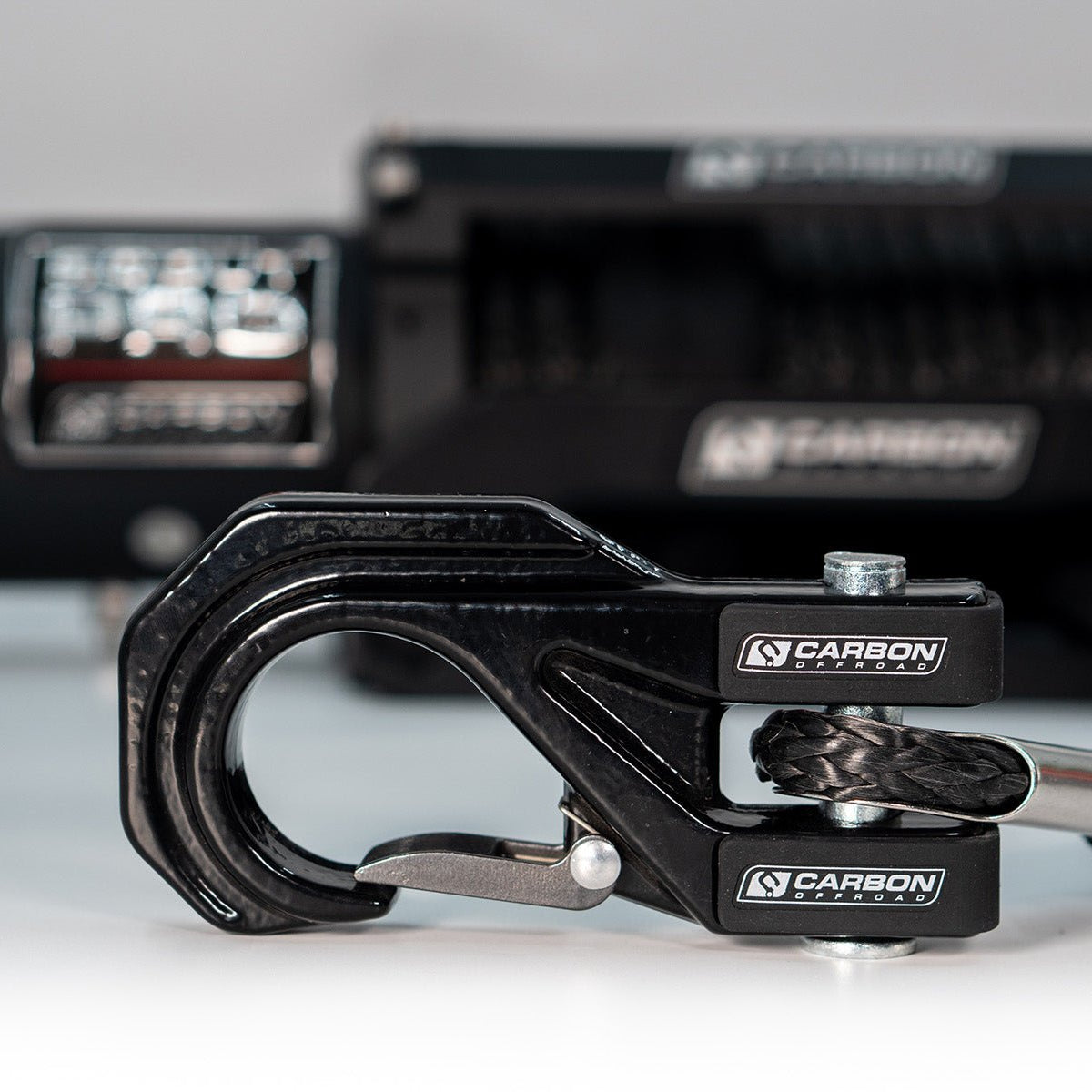

• 1 x Carbon Offroad MegaPro winch hook
• 1 x wired remote control with 3.7m lead
• 1 x wireless remote control
• 1 x isolator switch
• 1 x winch mounting bolt kit

Specifications

• Part number: CW-XD10
• Drum dimensions: 63mm x 224mm
• Mounting bolt pattern: 254mm x 114.3mm
• Recommended battery: minimum 650 CCA for winching
• Winch dimensions: 538 x 158 x 187mm
• Packing dimensions: 580 x 200 x 220mm
• Winch weight: 19.0kg with synthetic rope attached
• Total kit weight: 26.7kg including control box, cables, bolts and fairlead

Warranty

Backed by a limited lifetime mechanical warranty, 5-year electrical warranty and 5-year water ingress protection warranty.
