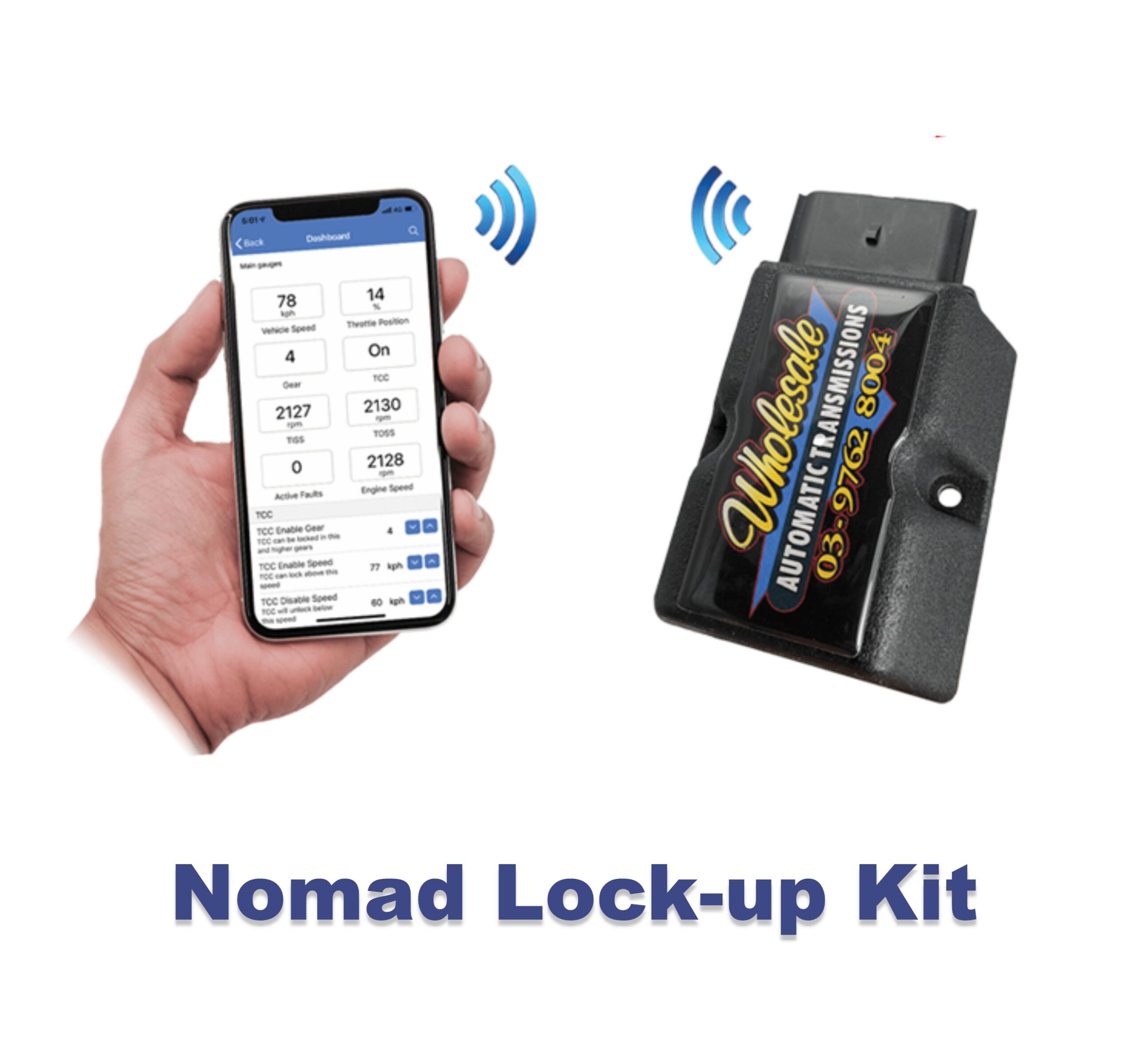

Designed to give you control over the factory lock-up torque converter, while still allowing the transmission to change up and down through the gears as per normal.
$795.00
In stock (can be backordered)
Note: 100% engine braking via 1st gear lockup is available on some stock transmissions. However, all transmissions running our Nomad Heavy Duty Valve Body can activate lockup in first gear. We recommend an upgrade if you haven’t already!
The torque converter is a device that sits between the engine and the automatic transmission. It is referred to as a fluid coupling with an unlocked or free spinning mode and a locked or engaged mode. The transmission ECU automatically controls when the torque converter is switched between these two modes.
When your vehicle is travelling in a situation where the ECU calculates that the torque converter lockup can be applied, a solenoid is activated sending oil pressure to act on a clutch inside the torque converter which in turn ‘Locks’ the engine output shaft and transmission input shafts together so they spin at the same speed. This primarily is to reduce heat build up and also reduce fuel consumption.
it can quite often cause frustrations to the driver as the factory ECU appears confused
Due to most vehicles being manufactured and tested to be operated on sealed roads in suburbia, the torque converter clutch usually works perfectly. However when the vehicle is in towing and/or offroad conditions, it can quite often cause frustrations to the driver as the factory ECU appears confused and is constantly changing the state of the torque converter clutch. With the assistance of the Nomad Torque Converter Lockup Control System, the driver can override the torque converter lockup circuit providing a relaxed and enjoyable driving environment.
The operation of the Nomad Torque Converter Lockup system is designed not to impact the vehicle’s standard operations in any way. We have specifically designed it so that when the system is off or unpowered, the torque converter circuit is operating under the factory standard ECU with no modification to the circuit. When the Nomad Torque Converter Lockup system is engaged, the built in ECU takes over control of the torque converter clutch circuit. Providing the factory ECU with a signal that mimics the solenoid and preventing any diagnostic lights from coming up on the dashboard.
The system can be purchased as a self install kit with easy to follow wiring schematics for each vehicle. However, if you are not that familiar with a soldering iron then installation is available at our workshop in Kilsyth Victoria.
It’s that easy
